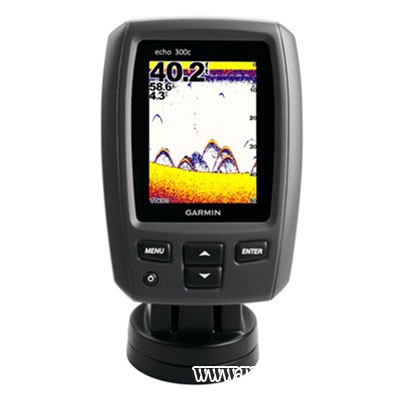

Garmin Echo 300C
See What Lies Below

echo 300c is designed to make catching fish a cinch. It’ s just that simple. The system’ s 3.5 " ( 8.89 cm) sunlight-readable display and exclusive Garmin HD-ID™ target tracking technology let you see through the water like never before. Plus, a 300 W ( RMS) sounder offers a viewing angle of up to 120 degrees and bottom detail to 1, 500 ft ( 457.2 m) .

For an uninterrupted view of the sonar image, echo 300c also boasts Garmin Smooth Scaling™ technology, which means you won’ t lose sight of the sonar history as the unit changes depth ranges.
Mount & Go

Designed with simplicity in mind, echo 300c is one most intuitive fishfinders on the market. Installation takes only a few minutes using the quick-release tilt mount and versatile transom-mount transducer included in the box

echo 300c features:

Garmin HD-ID™ technology
300 watts ( RMS) transmit power
Depths to 1, 500 ft ( 457.2 m)
Beam width to 120 degrees
3.5 " ( 8.89 cm) sunlight-readable color display
Tilt/ swivel mount, transducer, trolling motor clamp and transom mount

Spesifikasi - Garmin Echo 300C
Physical & Performance:
Unit dimensions, WxHxD: 4.1 " x 5.8 " x 2.8 " ( 10.4 x 14.7 x 7.1 cm)
Display size, WxH: 2.1 " x 2.8 " ( 5.3 x 7.1 cm) ; 3.5” diag ( 8.9 cm diag)
Display resolution, WxH: 240 x 320 pixels
Display type: QVGA, 256 colors
Weight: 11.6 oz ( 330 g)
Waterproof: yes ( IPX7)
Features & Benefits:
Audible alarms: yes
Dual-frequency sonar capable: yes
Dual-beam sonar capable : yes
Split-screen zoom: yes
Ultrascroll® ( displays fish targets at higher boat speeds) : yes
Fish Symbol ID ( helps identify fish targets) : yes
AutoGain Technology ( minimizes clutter, maximizes targets) : yes
Whiteline ( indicates hard or soft bottom) : no
Adjustable depth line ( measures depth of underwater objects) : yes
A-scope ( real time display of fish passing through transducer beam) : yes
Bottom lock ( shows return from the bottom up) : yes
Water temperature log and graph: yes
Water temperature sensor included: yes
Water speed capable ( displays speed on water) : yes
Other:
Frequency: 200/ 77 kHz
Transmit power: 300W ( RMS) / 2, 400W ( peak to peak)
Voltage range: 10V - 28V input
Maximum depth: 1, 500 ft freshwater*
Cone angle: 60º or 120º ( dual beam)
Additional: * Depth capacity is dependent on water bottom type and other water conditions.

Paket Penjualan:
What' s in the Box:

echo 300c
Quick release mount with tilt and swivel
Power cable
Transducer w/ mounting bracket, hardware and trolling motor clamp
Documentation
